Dayton Malleable Iron Co. Patented Smelting Ladle
SSC MUSEUM COLLECTION
Catalog No. SSC-DMICO-LDL-001
Cast Iron Smelting / Pouring Ladle | Loop Handle | Patent 1871 | Dayton, Ohio
c. 1871 • The Dayton Malleable Iron Co. • Dayton, Montgomery County, Ohio • Patented 1871

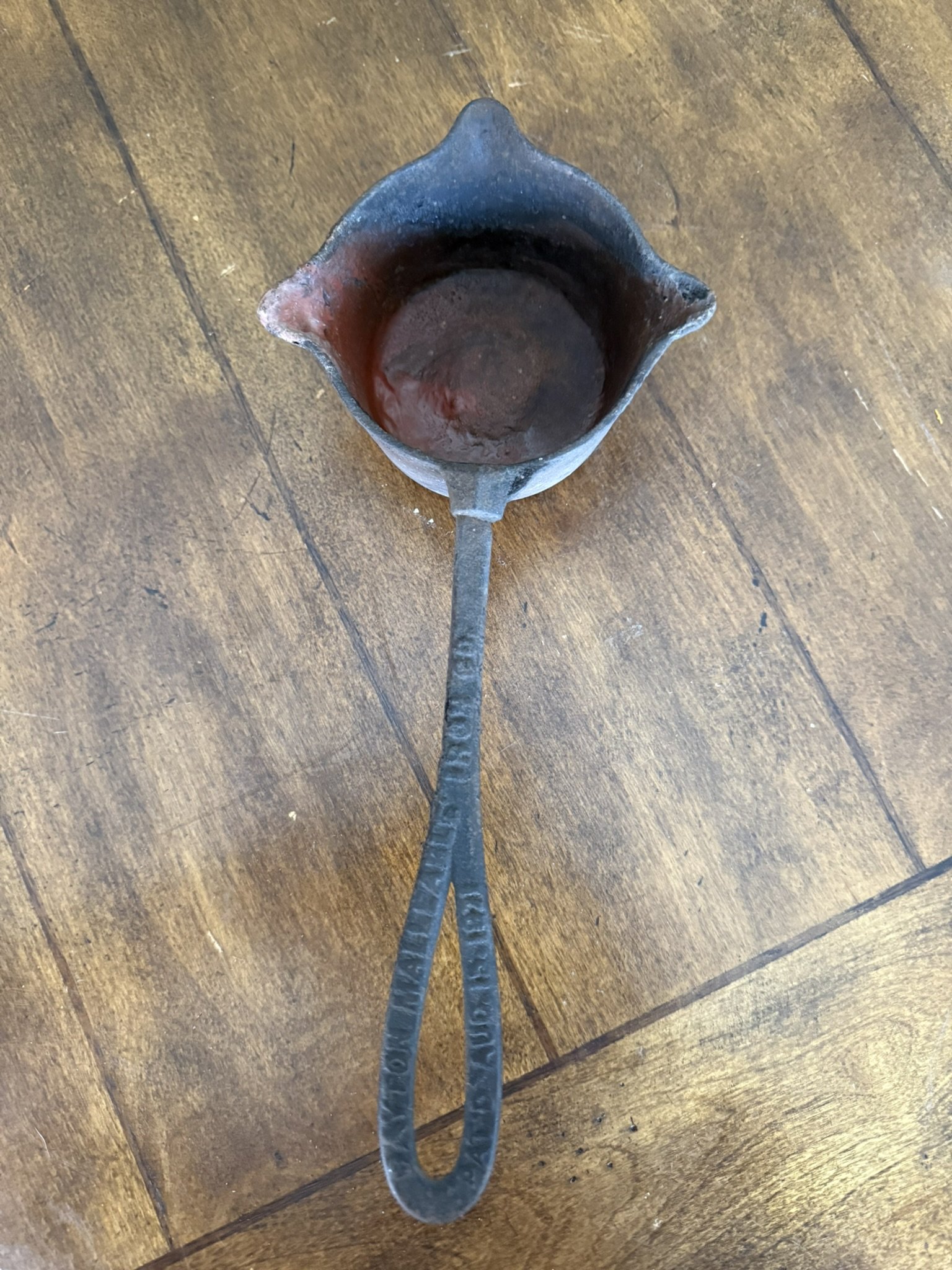

Top view of the Dayton Malleable Iron Co. patented smelting ladle, showing the full form: the round pour cup with integral spout notch, the connecting shank, and the distinctive loop handle. The maker’s marking and patent date are cast in raised lettering along the inner surface of the loop handle. Dayton, Montgomery County, Ohio, c. 1871.
This piece is not a cooking implement. It is not a kitchen utensil. It is a foundry tool — a smelting ladle used to scoop and pour molten metal in the workshop, the blacksmith shop, or the foundry floor. It was made by one of the most significant malleable iron companies in post-Civil War Ohio history, patented in the company’s fifth year of operation, and marked with the maker’s full name along the inner curve of its distinctive loop handle. It is the only piece in the SSC Museum Collection that was made not to cook in, but to cast with.
The Dayton Malleable Iron Co. was established in 1866 by Charles Newbold and Peter Loeb on East Third Street in Dayton, Ohio. It became a corporation in 1869. The 1889 History of Dayton credited it as the second oldest malleable iron foundry west of the Allegheny Mountains. In 1872, one year after this ladle was patented, the company moved to a much larger facility on West Third Street in an area then called Miami City. By 1909 it employed approximately 1,500 men and was ranked among the world’s leading malleable iron producers. Its records, spanning 1869 to 1969, are preserved at Wright State University Special Collections and Archives.
The ladle itself is compact and purposeful: a round pour cup with a small integral spout notch, joined by a flat shank to a U-shaped loop handle. The loop handle was both its practical innovation and its patent claim — a design that allowed the ladle to be hung on a hook, rack, or nail when not in use, and provided a two-handed grip for controlled pouring of molten metal. The marking runs along the inner face of the loop in raised cast lettering, fully legible after more than 150 years.
What Is a Smelting Ladle?

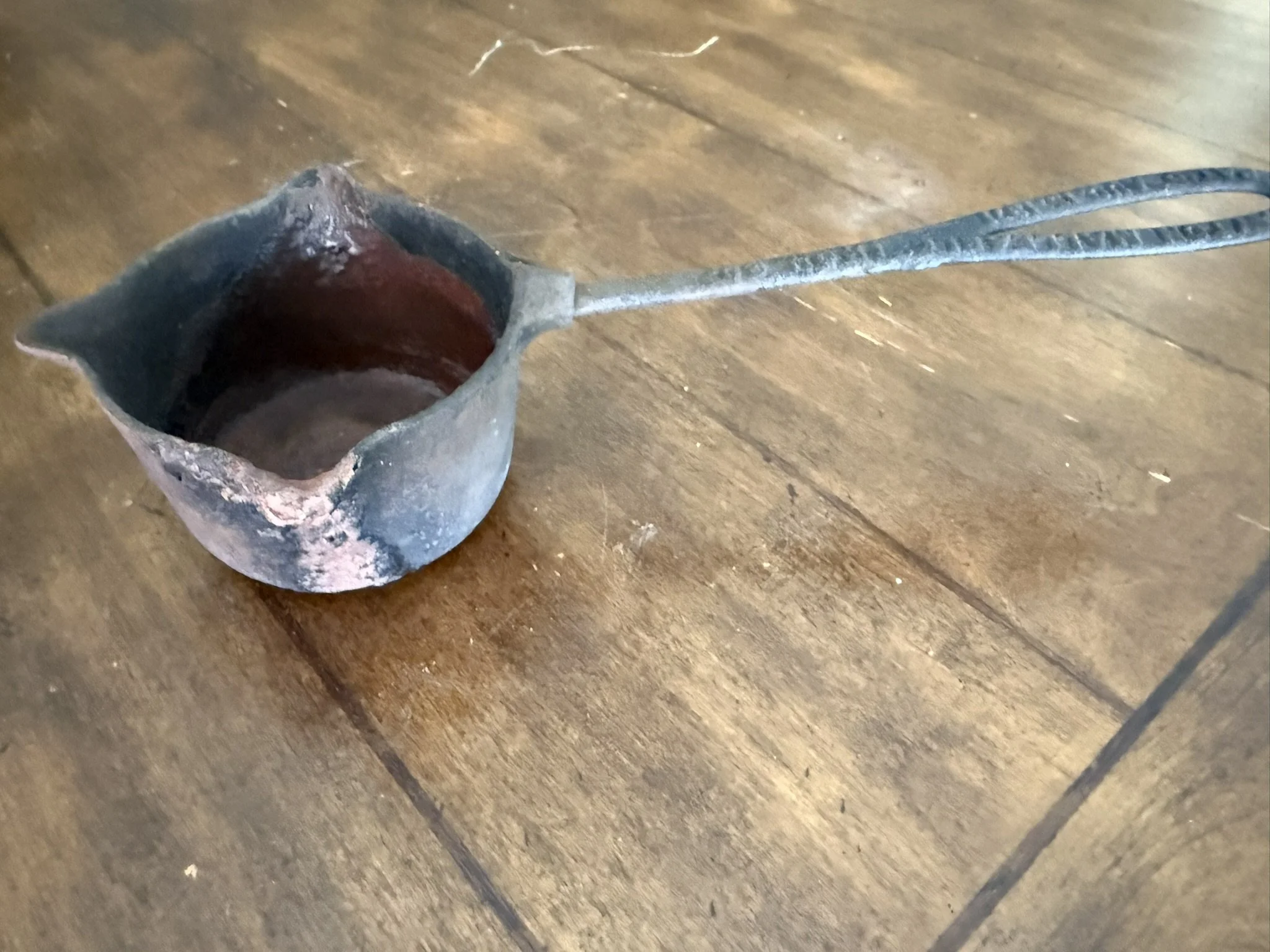

Profile view of the ladle showing the relationship between the round cup, the flat connecting shank, and the loop handle. The integral pour spout notch is visible at the rim of the cup at left. The shank carries a small hole, likely a secondary hanging or locking point. The patinated surface shows authentic age and use consistent with a working tool of this era.
In metallurgy, a ladle is a vessel used to transport and pour molten metal. The range in scale is enormous — from the massive steel-mill ladles that hold hundreds of tons and require overhead cranes, to the small hand-carried ladles used by blacksmiths, plumbers, and foundry workers to pour lead, tin, pewter, type metal, and small quantities of other low-melting-point alloys. The Dayton Malleable Iron Co. ladle belongs firmly to this second category: a hand-scale tool for the workshop.
Small smelting ladles of this type were essential equipment in the 19th-century industrial and craft workshop. Blacksmiths used them to pour lead for weights, bushings, and bearings. Plumbers used them to pour lead for pipe joints. Printers used similar tools to pour type metal into molds. Pattern makers and small foundry operators used them to pour test castings or small production runs. Any shop that worked with molten low-melting-point metals needed a ladle; a well-designed ladle with a secure grip and a controlled pour spout was a meaningful improvement over improvised vessels.
The safety of the ladle’s design was not incidental. Working with molten metal at any scale is inherently hazardous — a ladle that slips, tips, or drips can cause severe burns. The 1867 invention of the gear-tilted safety ladle for large foundry pours was specifically motivated by the accidents that occurred when workers lost control of heavy ladles. At the smaller hand-scale level, the loop handle design of the Dayton Malleable ladle addressed the same concern: a double-bar handle provides more contact surface, more control, and a more secure grip than a simple rod or strap, particularly when wearing work gloves or managing a pour with one hand while steadying the mold with the other.
The Loop Handle: Design and Patent

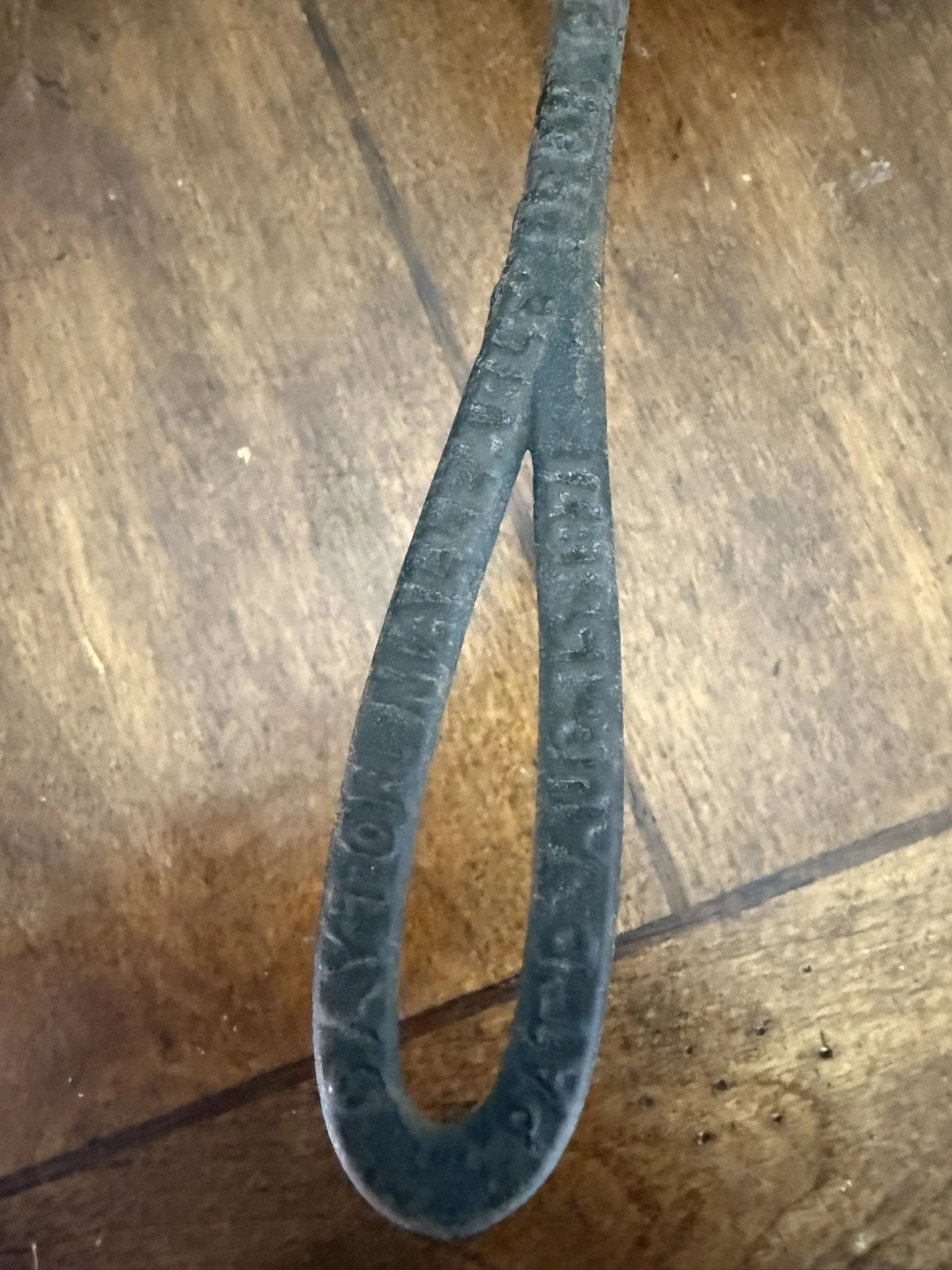

Close view of the loop handle showing the raised cast lettering along the inner surface. The marking reads: DAYTON MALLEABLE IRON CO. / PAT. AUG. [date] / 1871 — cast in raised letters that remain fully legible. The loop form — a U-shaped closed return at the end of the handle shank — is the defining feature of the patent design and the piece’s most visually distinctive element.
The loop handle is the defining innovation of this ladle design, and its patent claim. Rather than a simple straight rod or a single bent strap, the handle terminates in a closed U-shaped loop — the shank runs out, curves back, and returns to itself, creating a closed oval form that can be gripped with two fingers, hung on a hook, or caught on a rack. The loop is cast as a single integral piece with the shank and cup — there are no welds, no rivets, no separate parts that could work loose under the thermal stress of repeated contact with hot metal.
The specific patent date cast into the handle includes the month and year. The month is partially legible in the available photographs; the year 1871 is clearly visible. This places the patent in 1871, the company’s fifth year of operation, during the period when it was still located at its original East Third Street facility — one year before the major expansion to West Third Street. The ladle was therefore patented and likely first produced in the more modest original plant, before the company’s growth into the large Miami City operation.
It is worth noting that Dayton was not alone in patenting smelting ladles in 1871. M. Hose & Lyon, another Dayton firm, patented a competing cast iron ladle design on August 15, 1871 — the same year, the same city, a different design. Two Dayton manufacturers simultaneously seeking patent protection for smelting ladle improvements in 1871 suggests a moment of competitive product development in this specific tool category within Dayton’s iron trade community. The Dayton Malleable Iron Co.’s ladle and the Hose & Lyon ladle represent parallel responses to the same market need, from the same geographic and industrial context.
The Dayton Malleable Iron Co.: A Major Ohio Foundry

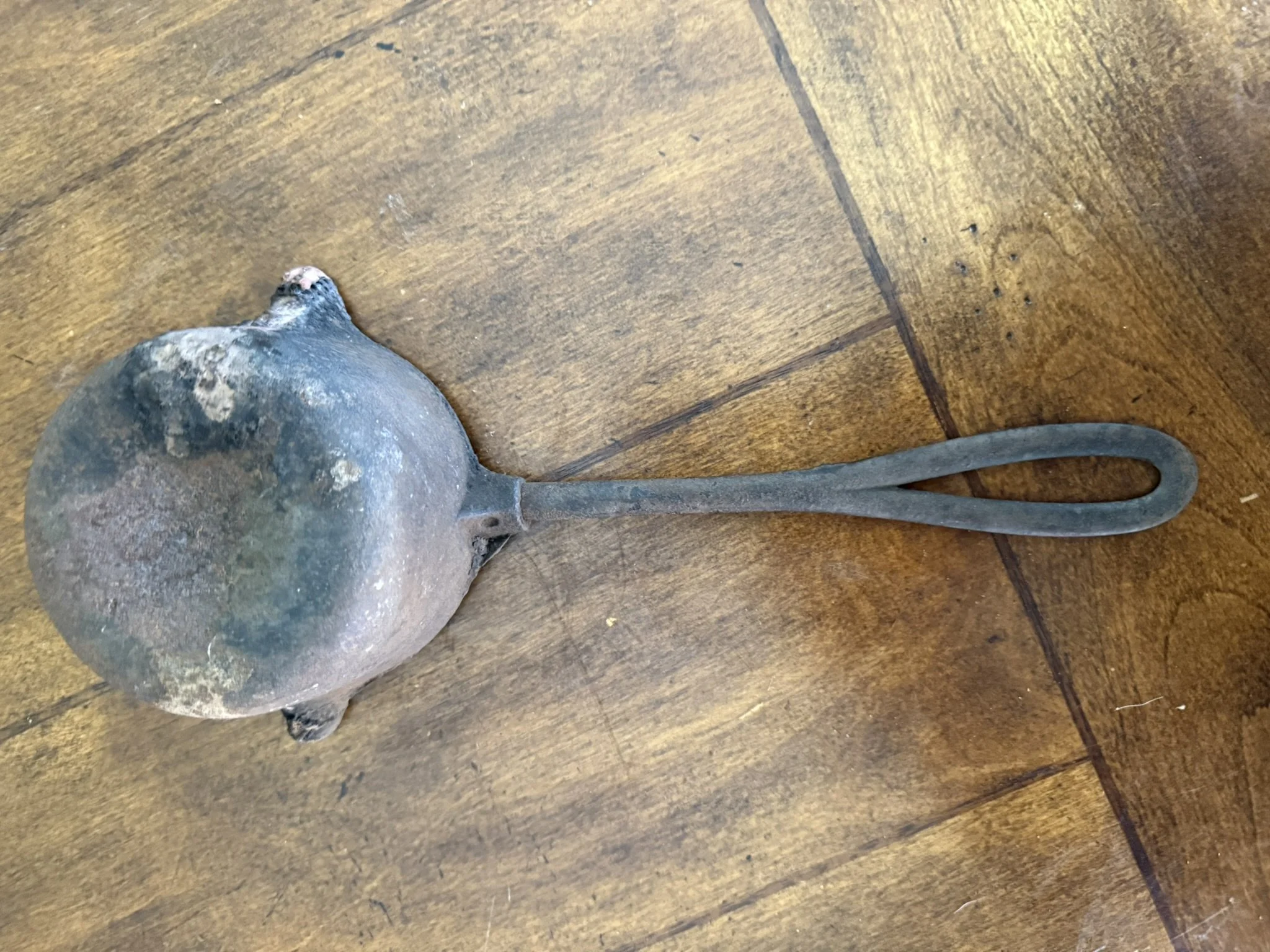

Bottom view of the ladle cup showing the full round form, the small legs or standoffs at the base that allow the cup to rest level when set down, and the overall casting quality. The surface shows appropriate age and patina consistent with an industrial tool of this period that saw genuine use.
The Dayton Malleable Iron Co. was established in 1866 by Charles Newbold and Peter Loeb, operating initially from East Third Street in Dayton, Ohio. It was incorporated in 1869 — the year its surviving records begin, now held in the MS-148 collection at Wright State University’s Special Collections and Archives. The 1889 History of Dayton credited the company as the second oldest malleable iron foundry west of the Allegheny Mountains, a distinction that placed it in the foundational generation of American malleable iron production west of the Pennsylvania line.
Malleable iron is a form of cast iron that has been heat-treated to reduce its brittleness, making it tougher, more ductile, and better able to withstand impact and bending without fracturing. American malleable iron production began in earnest in the 1820s when Seth Boyden started a foundry in Newark, New Jersey for harness hardware and small castings. The industry spread westward through the mid-19th century, producing hardware for saddles, carriages, wagons, and later the railroads. The Dayton Malleable Iron Co. entered this established industry in 1866 and rose to dominate it.
In 1872 — one year after this ladle was patented — the company moved to a much larger property on West Third Street in the area then called Miami City, signaling a major expansion of operations. By 1909, historian A.W. Drury recorded the plant as employing approximately 1,500 men and ranking among the top malleable iron firms in the United States and perhaps the world. Trade catalogs from the Dayton Malleable Iron Co. are held in the Smithsonian National Museum of American History’s collections, where they document a product line that grew from foundry tools and carriage hardware into railroad components and, eventually, automobile parts.
The company’s presidents across its peak decades included Robert C. Schenck Jr. (1890–1902), Pierce D. Schenck (1907–1914) — who later founded the Speedwell Motor Car Company and then the Duriron Company — and John C. Haswell (1915–1936). The firm eventually acquired plants in Ironton, Ohio and other locations, and its corporate offices moved to Kettering in 1958. The company that made this ladle in 1871 became, over the following century, one of the defining industrial enterprises of the Dayton region.
Examining the Ladle

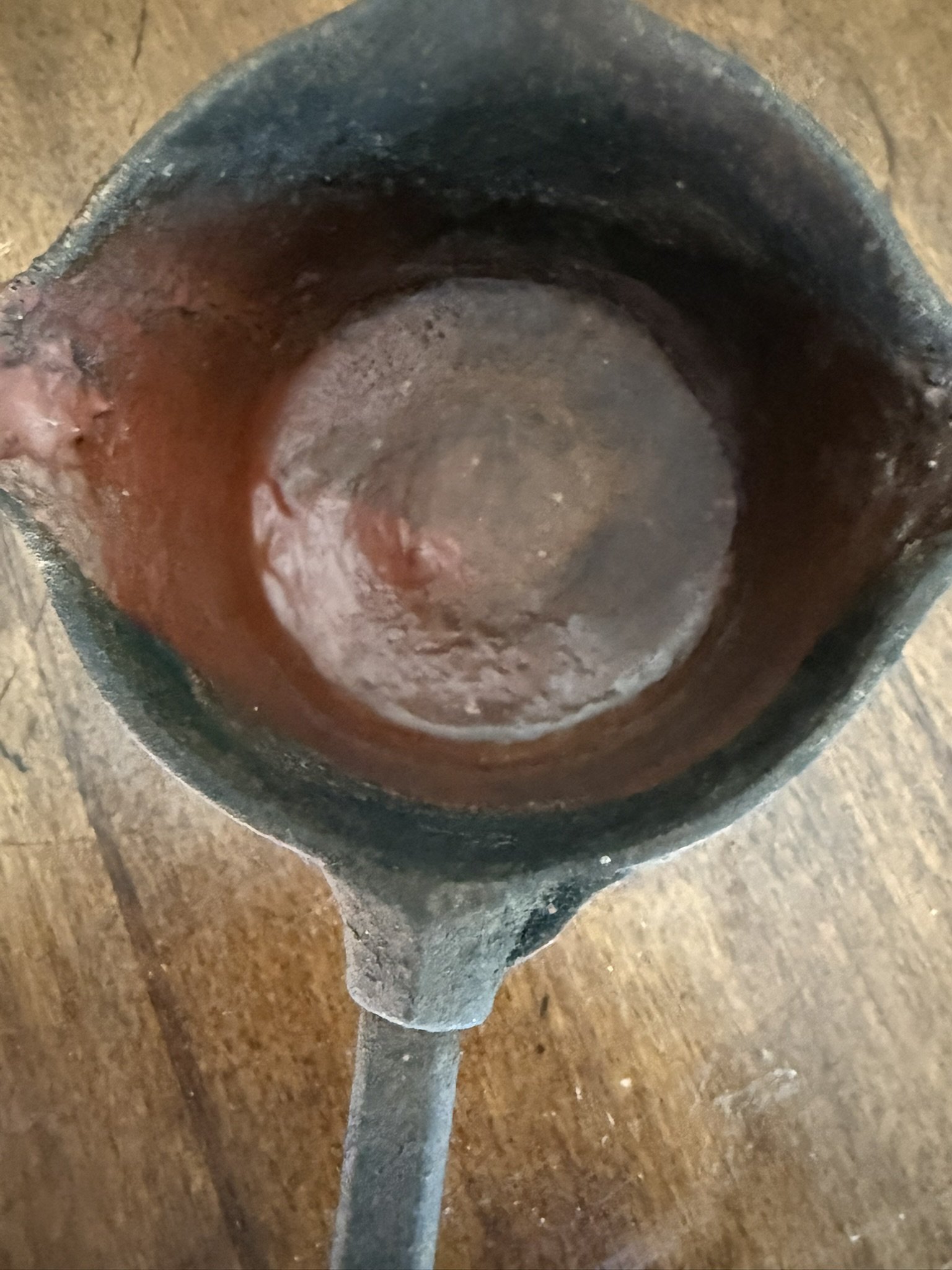

Interior view of the pour cup showing the rounded bowl form, the dome-shaped raised center of the cup floor, and the integral pour spout notch at the rim (visible at upper right). The rust-red interior coloration is original thermal patina from use with molten metal — preserved in full, unsealed with SSC Archival Black™ for museum display. No lye, no stripping, no alteration of the original surface.
The ladle’s cup is a compact round bowl, somewhat shallow relative to its diameter — a proportional choice that optimizes the cup for controlled pouring rather than maximum capacity. The floor of the cup has a slightly domed raised center, which helps direct molten metal toward the rim and pour spout during use. The integral pour spout notch at one side of the rim is cast as part of the body — a small V-shaped interruption in the rim that controls the flow of metal when the ladle is tilted, preventing splashing and enabling a directed, precise pour.
The interior surface carries the rust-red coloration that develops in iron through repeated thermal cycling — heating and cooling from contact with or proximity to molten metal. This is authentic use evidence: not merely storage rust, but the characteristic surface transformation of a working foundry tool. The cup was used. The metal was hot. The marks are real. SSC Archival Black™ was applied over this original surface to stabilize and protect it, not to replace it. The thermal patina beneath is fully intact.
The shank connecting cup to handle is flat and relatively narrow, a practical choice for a hand-carried tool: narrow enough not to impede grip or pour angle, rigid enough to transmit the weight of a full cup of molten metal without flexing. A small hole through the shank provides a secondary hanging or locking point — or may have accommodated an auxiliary hook or clip for securing the ladle on a specific workshop rack.
Preservation Approach: SSC Archival Black™
The Dayton Malleable Iron Co. smelting ladle was acquired in its original, unrestored condition and received SSC’s deliberate non-restoration treatment: no lye tank, no electrolysis, no stripping of any kind. The original surface — every layer of it — was left exactly as found. The only treatment applied was a single application of SSC Archival Black™, SSC’s museum-display seasoning, applied to stabilize the iron and bring the casting’s character to its fullest visual expression without altering or removing any of the original surface material.
This decision was deliberate and considered. The lye tank exists in the SSC restoration protocol to strip accumulated grease, seasoning, and surface contamination from hollow ware that will be re-seasoned for display or use. It is the right tool for a kitchen piece. It is the wrong tool for a working industrial artifact whose surface is itself the historical record.
The rust-red interior coloration of the pour cup is not contamination — it is thermal patina, the physical record of repeated heating and cooling cycles from contact with or proximity to molten metal. That surface took 150 years to develop and cannot be reproduced. Lye would strip it to bare gray iron. What would be gained is a cleaner appearance; what would be lost is the evidence of the ladle’s working life. The SSC approach treats the original patina as the artifact, not as an obstacle to treatment.
SSC Archival Black™ was applied to the exterior and interior surfaces to stabilize the iron against further oxidation, deepen the visual contrast of the casting’s surface, and bring the handle markings to maximum legibility. The result is a piece that reads authentically — original patina intact, working surface character preserved, casting marks sharp — sealed for museum display without compromise to the historical surface.
This is how SSC handles industrial artifacts: preserve what is there, protect what is preserved, and let the iron tell its own story.
SSC Industrial Context: Beyond Hollow Ware
The SSC Museum Collection is built on Ohio cast iron, with a primary focus on hollow ware — the kettles, skillets, pots, and specialty cookware that Ohio foundries produced for American households across the 19th and early 20th centuries. This ladle sits outside that category deliberately. It is the collection’s first industrial tool piece — an object that was never intended for the kitchen, never sold to a household, never cooked a meal. It was a foundry floor tool, a blacksmith’s working implement, a piece of the industrial infrastructure that made the hollow ware and everything else.
The Dayton Malleable Iron Co. connection makes it a natural fit for the collection despite its non-culinary purpose. This is a Dayton, Ohio cast iron piece from 1871 — made in the same city, in the same industrial tradition, in the same post-Civil War Ohio foundry boom that produced Greer & King’s bean pots, and that would within a decade produce the wagons, carriage hardware, and railroad fittings that defined the region’s manufacturing identity. The foundry that made this ladle was, by 1909, the same scale of operation as some of the major hollow ware producers — 1,500 workers, world-class standing. This ladle is from year five. It is from the beginning of something that became very large.
Its presence in the SSC collection also documents a specific and unusual moment: Dayton, Ohio in 1871 was a city of competing smelting ladle patents. Two Dayton manufacturers sought patent protection for cast iron ladle designs in the same year. The Dayton Malleable Iron Co.’s version — this piece — represents one side of that competition. M. Hose & Lyon’s version (August 15, 1871) represents the other. Both came out of the same industrial ecosystem. The SSC collection now holds one of them.
Piece Details
Manufacturer
The Dayton Malleable Iron Co., Dayton, Montgomery County, Ohio
Piece Type
Industrial Smelting / Pouring Ladle (foundry and workshop tool)
Form
Round pour cup with integral spout notch; flat connecting shank with small hole; U-shaped closed loop handle — all cast as a single integral piece
Material
Cast iron throughout; integral casting, no separate components
Handle Marking
DAYTON MALLEABLE IRON CO. / PAT. [month] / 1871 — raised cast lettering on inner face of loop handle
Patent Date
1871 — specific month visible on handle; year 1871 confirmed; specific USPTO patent number subject to ongoing research
Patent Innovation
Loop handle design — U-shaped closed return providing secure grip, hanging capability, and integral single-cast construction
Industrial Context
Hand-scale smelting / pouring ladle for workshop use; blacksmith, plumber, printer, and small foundry applications; used with lead, tin, type metal, and other low-melting-point alloys
Dayton Ladle Context
Dayton Malleable Iron Co. and M. Hose & Lyon both patented competing cast iron smelting ladle designs in 1871 — the same year, the same city
Company Founded
1866 by Charles Newbold and Peter Loeb; incorporated 1869; records 1869–1969 at Wright State University Special Collections (MS-148)
Company Standing
Credited in 1889 History of Dayton as second oldest malleable iron foundry west of the Allegheny Mountains; 1,500 employees by 1909
Original Location
East Third Street, Dayton (1866–1872); moved to West Third Street, Miami City area, 1872
Condition
Museum Display — original surface fully preserved; no lye, no stripping, no alteration of original patina; rust-red interior thermal patina intact from period use with molten metal; SSC Archival Black™ applied to stabilize iron and seal for museum display; handle marking fully legible; no cracks visible; all cast features intact
Preservation Method
SSC Archival Black™ museum-display seasoning only — applied over original unaltered surface; original thermal patina and exterior patina preserved in full
Date of Manufacture
c. 1871 — established by patent date cast into handle; likely produced at original East Third Street plant, one year before the West Third Street expansion
Acquisition Source
eBay — Seller: jeffcollectiques
eBay Item No.
326511577701
Order No.
25-14478-05582
Acquisition Date
April 13, 2026
SSC Catalog No.
SSC-DMICO-LDL-001
Collection Category
Ohio Cast Iron — Pre-1905 Industrial Tools / Dayton Foundry
Why This Piece Matters
The Dayton Malleable Iron Co. would go on to employ 1,500 workers and rank among the top malleable iron firms in the world. This ladle is from 1871. The company was five years old. The West Third Street expansion that would define the modern plant was a year away. This is the early iron, from the small facility on East Third Street, from a company that had just incorporated two years before and was establishing itself in a competitive market by doing what ambitious 19th-century manufacturers did: they patented their improvements and cast their name in iron on the result.
It matters as the collection’s first industrial tool piece — the first object in the SSC Museum that was made for the foundry floor rather than the kitchen. The same Ohio iron tradition that produced hollow ware also produced the tools that made the hollow ware possible. The ladle and the kettle are part of the same industrial heritage. Separating them artificially leaves the story incomplete.
It matters because 1871 was a specific and documented moment in Dayton’s cast iron history: two ladle patents, two Dayton firms, the same year. That kind of competitive specificity is rare to document. The Dayton Malleable Iron Co.’s patent ladle and the M. Hose & Lyon patent ladle were made blocks apart, in the same city, in the same year, for the same market. One of them is in this collection. The other is still out there.
The iron is 155 years old. The loop handle still works. The name is still readable. The company became one of Ohio’s great industrial enterprises. This is where it started.
